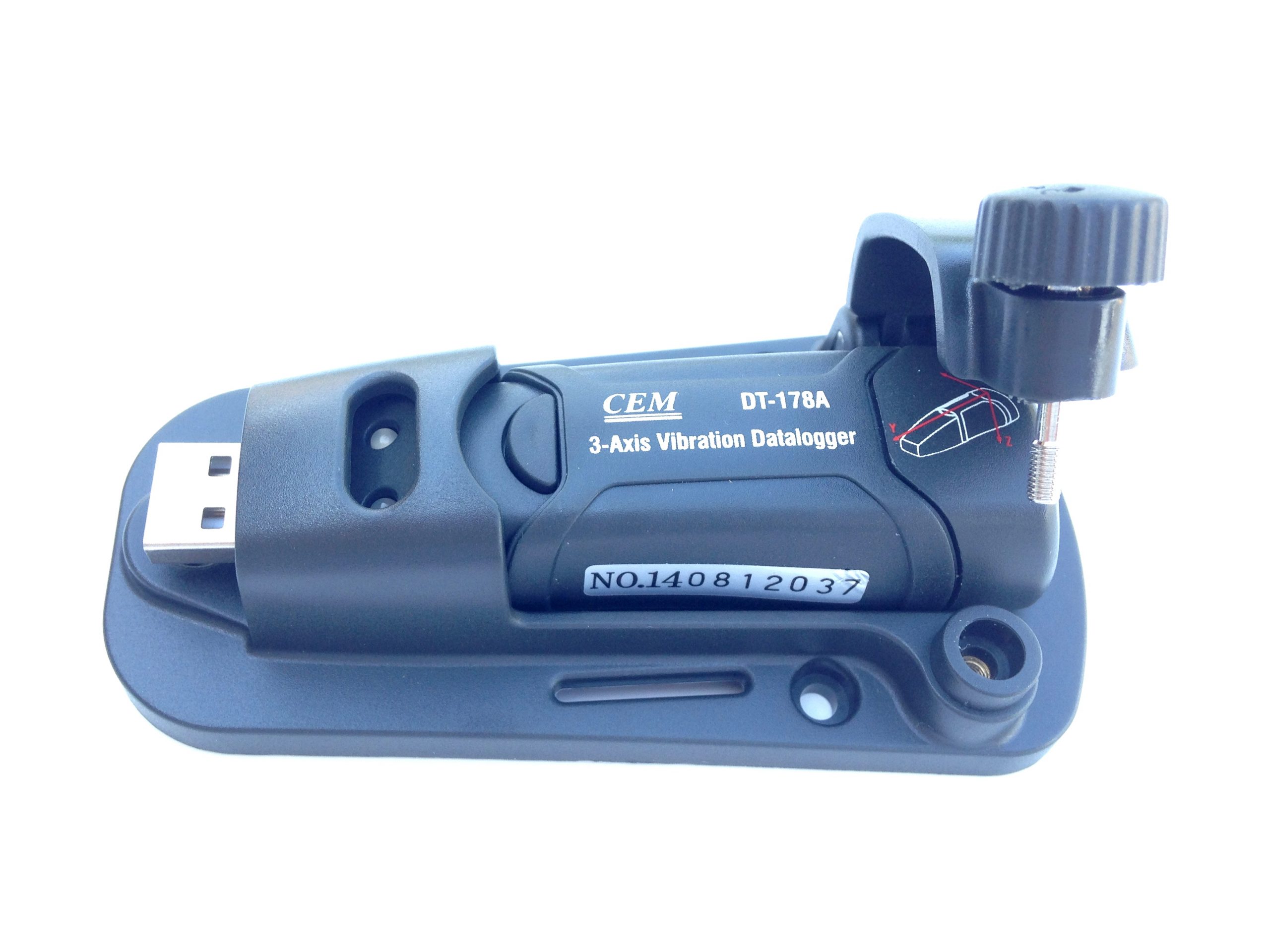

3-Axis Vibration Data Logger Accelerometer

3-Axis Vibration Data Logger Accelerometer
Zoom images

This data logger is engineered to record acceleration data of shock / vibration. It records and time 3-axis vibrations and peaks to provide a history of vibration conditions. The measurement can be either dynamic or static acceleration. Data storage capacity can be up to 85,000 readouts. It is widely applied in engineering & manufacturing environments, shipping & transportation industries, building inspection applications, etc.

$255.00 AUD Inc. GST

quantity
Add to Wishlist
Categories: ,
Need Help? Call 1300 788 213 Now to Talk to an Expert!
Applications
  • Vehicle testing
  • Building & Construction
  • Aerospace
  • Ecological
Features
  • Built-in 3-axis accelerometers record the time of shock occurrences
  • Record and time 3-axis shock and peaks
  • Real time FFT for frequency analysis
  • Measure dynamic and static acceleration
  • Optional motion (normal) or freefall detection mode
  • Complimentary software for setup, analysis & report generation capabilities
  • LEDs signal lights
  • User selectable mounting method: Magnet, Screw or Glue
  • USB interface for data downloading
  • Manual or automatic start
Specifications
  1. Acceleration Sensor: MEMS Semiconductor
  2. Acceleration Range: ±18g
  3. Acceleration Resolution: 0.00625g
  4. Calibrated Accuracy: ± 0.5g
  5. Frequency Range: 0Hz ~ 60Hz
  6. Data Memory: 4Mbit FLASH（85764 peak acceleration samples and 210 freefall samples）
  7. Data Format: Time stamped peak acceleration and freefall, average and peak vector sum
  8. Sampling Rate: 1 second to 24 hours
  9. Power: 3.6V lithium battery; specs: 14250 or 1/2AAA
  10. Power Consumption: 1mA (average) recording, <15µA idle
  11. Battery Life: About 1000 hours
  12. Computer Interface: USB connection
  13. Operation Temperature and Humidity: 0°C ~ 40°C; 10%RH ~ 90%RH
  14. Storage Temperature and Humidity: -10°C ~ +60°C; 10%RH~75%RH
  15. Dimensions: Pedestal: 106mm x 56mm x 33.5mm; data logger: 95mm x 28mm x 21mm
  16. System Requirement: Windows 7, 8, 10 & 2000, Vista, XP
  17. Minimum Hardware Requirement: 8M EMS memory, 2M hard disk, a free USB jack
Package Set

– 1 x Vibration Data Logger with Cap

– 1 x Mounting Pedestal with Magnets

– 1 x Logging Software on CD

– 1 x 3.6V Lithium Battery

– 3 x Mounting Screw Sets

– 1 x User’s Manual

– 1 x Factory Standard Packing
