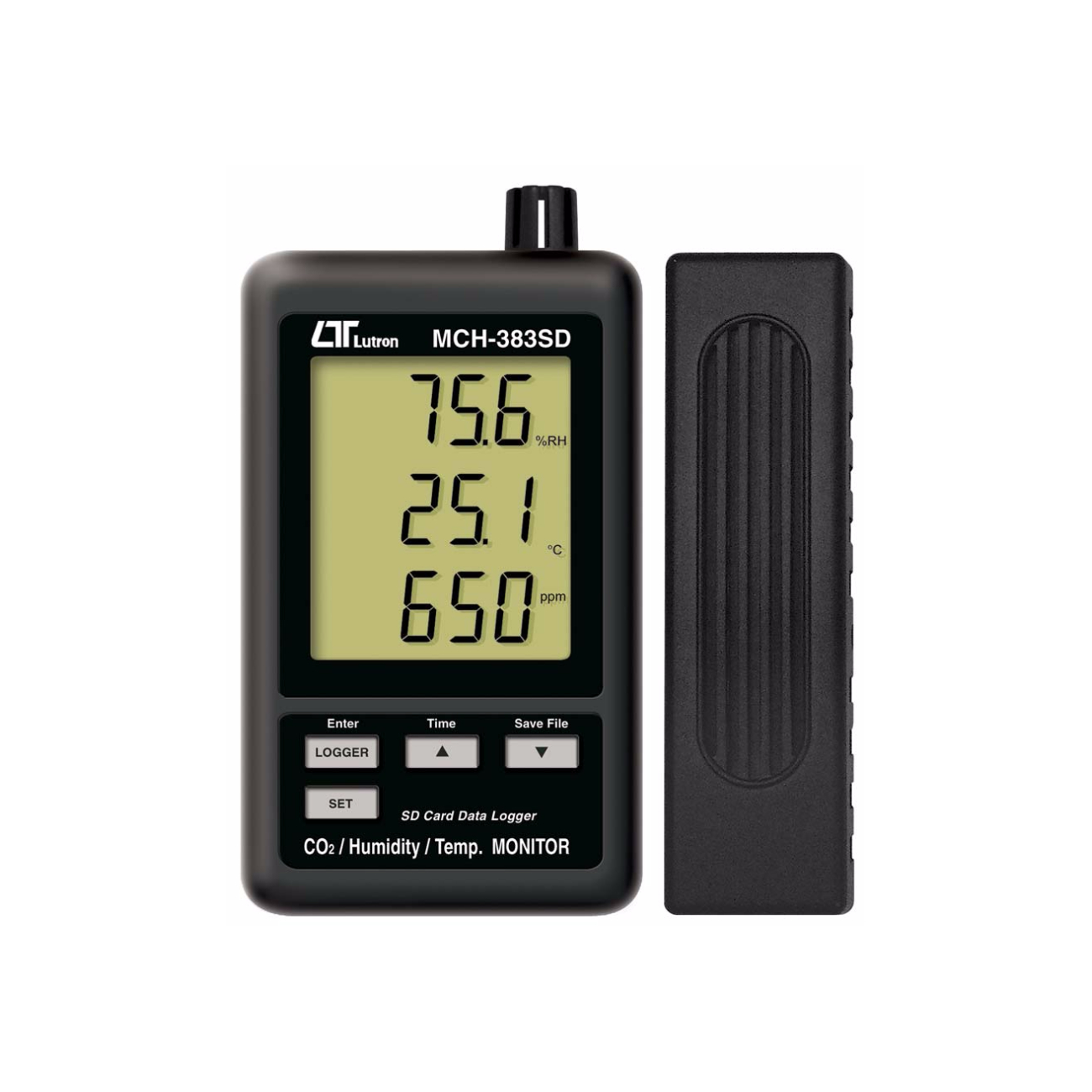

Humidity, Temperature & CO2 Data Logger

Carbon dioxide display and monitoring is becoming common to determine energy efficient ventilation regimes for buildings. The Lutron MCH-383SD is a very economical way to obtain long term data on these variables, and if desired – make a permanent display. Data is saved at intervals, or on “auto” where data is logged when there is a change in the measured variables only. The SD card can be transferred to a computer and data analysed using normal spread sheet programs.If required a USB interaface and PC program for analysis is optionally available. 9VDC external power source is required for operation. The logger is only 132x80x32mm with a 50x60mm display- hanging clip supplied. The CO2 probe is separate 132x38x32mm – hanging clip supplied

  • Display and record CO2 0-4000ppm, RH 10-90% and temperature 0-50C
  • Wall mount with large simultaneous display
  • Data log 5 to 600 second intervals or auto
  • Power by 9V Plug pack with battery back up.
  • Log to SD card – transfer tp PC an analysis with standard spread sheet software
  • CO2 sensing using stable NDIR technology
  • SD card not included
  • USB cable and PC application specific software available as option
  • Recorder with real time data recorder, save the measuring data along the time information (year, month, date, minute, second) into the SD memory card and can be download to the Excel, extra software is no need.
  • CO2 range : 0 to 4000 ppm.
  • Humidity : 10 to 90 %RH.
  • Temperature : 0 to 50.0 oC, oC/oF.
  • Show CO2, humidity and temperature value in the same LCD.
  • Large LCD display, easy readout.
  • Low power consumption and long battery life when use battery power.
  • DC 1.5V (UM-4, AAA) battery x 6 PCs or DC 9V adapter in.
  • RS232/USB computer interface.
  • Size : 132 x 80 x 32 mm.

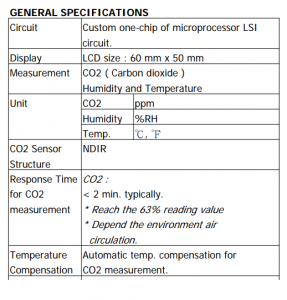

Humidity, Temperature & CO2 Data Logger manual 2

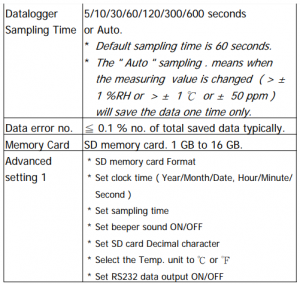

Humidity, Temperature & CO2 Data Logger manual 2

Humidity, Temperature & CO2 Data Logger manual 2

Instruction manual……………………… 1 PC
Included CO2 probe………………………….1 PC
AC to DC 9V adapter……………………… 1 PC
Main meter hanging unit ( with sticker )………1 PC
CO2 hanging unit ( with sticker )………..1 PC
