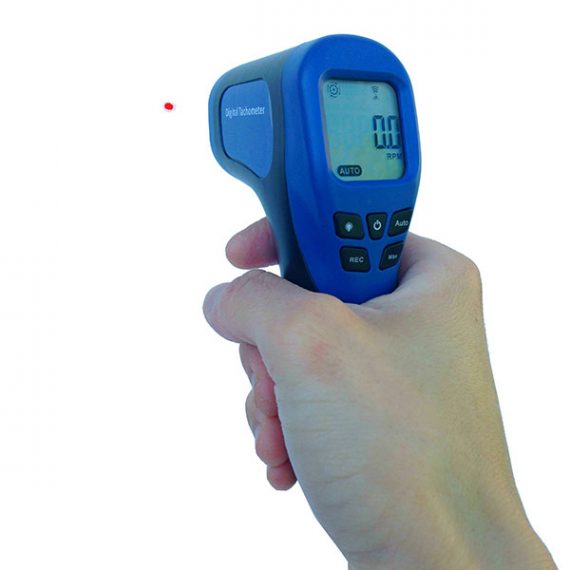

Non Contact Data Recording Laser Digital Tachometer

With this non-contact digital tachometer, you will be able to choose either manual scanning for different measurement or automatic for continuous readings without pressing the trigger. This sizeable The LCD display with backlight display makes it easy to read and enable users to work in low light intensity environment and the automatic power off conserves your battery, as well as 60 sets of data storage with recalling function. Other features such as MAX, MIN, AVG, data hold etc are also included in this modern design gun type tachometer. It is useful for automotive, engineering and other relevant industries.

  • Mini handheld gun-type design.
  • Selectable Automatic or Manual measurement.
  • Up to 60 sets of data record & recall.
  • MAX. / MIN. / AVG. value record function.
  • Record time interval setup function.

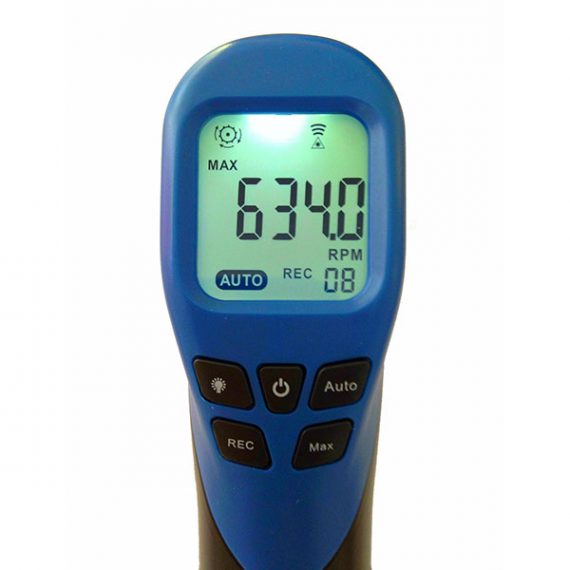

  • Highly visible LCD display with white backlight.
  • Data hold.
  • Automatic or manual power off.
  • Low battery indicator.
  • Light weight with ABS plastic housing
ModelTM-900



Measurement range



2.5 – 99,999 RPM
Resolution0.1 RPM @ 2.5 – 999.9 RPM; 1 RPM @ 1000 – 99,999 RPM
Accuracy



±0.02% + 1 digital
Measuring distance



50 – 500mm
Sampling Time



0.5s (Above 120 RPM)
Operating temperature



0 to 50 ºC (32 to 122 ºF)
Operating humidity



10 to 90 % RH
Storage temperature



-10 to 60 ºC (14 to 140 ºF)
Storage humidity



10 to 75 % RH
Dimensions

t

145 x 90 x 35 mm
Weight



120g (included 9V battery)
  • 1 x Handheld Tachometer
  • 1 x 9V Battery
  • 1 x Carry Pouch
  • 1 x Operational Manual
  • 1 x Standard Factory Packing
