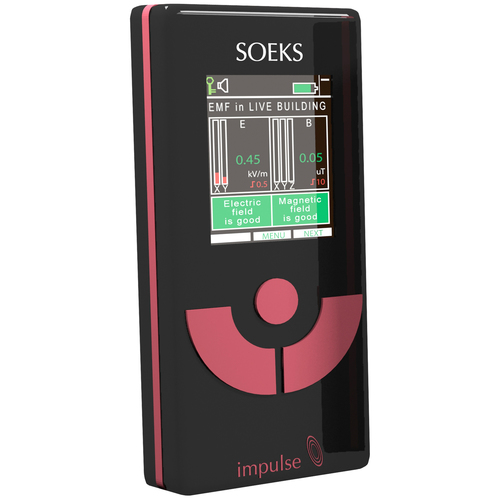

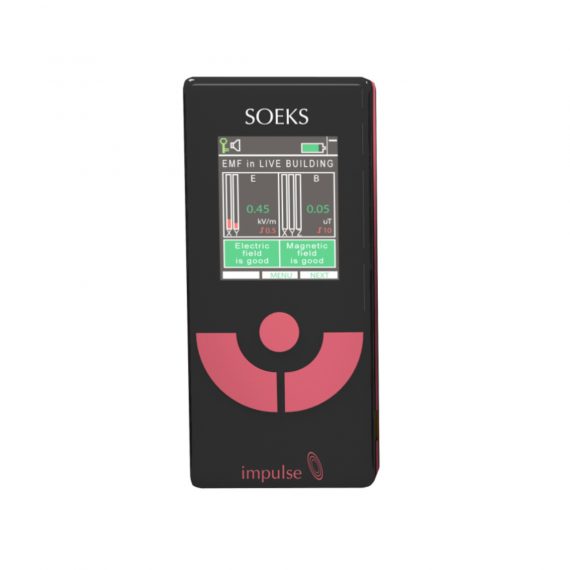

SOEKS Impulse Electromagnetic Field (EMF) Meter

  • Express analysis of electromagnetic fields in various living spaces, residential areas and PCs
  • Detection of electromagnetic radiation sources
  • Localization of hidden electric wiring (in walls, furniture, etc.)
  • Identifying the most favorable residential areas for humans and animals alike

Indicators in Measure Mode



Soeks Impulse Electromagnetic Field (EMF) Indicator

Soeks Impulse Electromagnetic Field (EMF) Indicator

1. Current measurement mode.
2. RMS value of electric field intensity along X and Y axes.
3. Electric field measurement units: kV/m (kilovolts per meter).
4. Electric field intensity threshold for audible, color and text warning triggering (it is set according to the active norms).
5. Graphic columns for display of instant electric field values along X and Y axes.
6. Information message about electric field level, according to the active norms.
7. RMS value of magnetic field intensity along X, Y and Z axes.
8. Magnetic field measurement units: uT (microtesla).
9. Magnetic field intensity threshold for audible, color and text warning triggering (it is set according to the active norms).
10. Graphic columns for display of instant magnetic field values along X, Y and Z axes.
11. Information message about magnetic field level, according to the active norms.

_________________________________________________________________________________________________________________

Indicators in VIEW Mode

Soeks Impulse Electromagnetic Field (EMF) Indicator

Soeks Impulse Electromagnetic Field (EMF) Indicator

12. Electric field intensity value along X axis. Measurement unit: V/m (volts per meter).
13. Graphic scale for output of electric field intensity value along X axis.
14. Electric field intensity value along Y axis. Measurement unit: V/m (volts per meter).
15. Graphic scale for output of electric field intensity value along Y axis.
16. Magnetic field intensity value along X axis. Measurement unit: uT (microtesla).
17. Graphic scale for output of magnetic field intensity value along X axis.
18. Magnetic field intensity value along Y axis. Measurement unit: uT (microtesla).
19. Graphic scale for output of magnetic field intensity value along Y axis.
20. Magnetic field intensity value along Z axis. Measurement unit: uT (microtesla).
21. Graphic scale for output of magnetic field intensity value along Z axis.



EMF Meter IMPULSE SOEKS SPECIFICATIONS
Measurable Electromagnetic Field Frequency Range, HZ from 20 to 2 000
Range of Magnetic Field (Magnetic Induction) intencity Amplitude Along X,Y,Z axis, A/m (uT) from 0,004 to 12 (0,005 to 15)
Range of Magnetiv Field (Magnetic Induction) intemsity mean Square Value, A/m (u/T) from 0,008 to 20 (from 0,1 to 25)
Maximum Permissible Relative Error Measurement of Magnetic Field Intencity,% +/- 30
Hardware Nonlineary of Measurement of Magnetic Field of 50 Hz in Frequency, not more than,% 7,0
Range of Electric Field Intencity Amplitude Along X,Y, Z axis, V/m from 10 to 1000
Range of Electric Field Intensity Mean Square Value, V/m from 17 to 1700
Maximum Permissible Relative Error of Measurement of Electric Field Intensity, % +/- 30
Hardware nonlneary of Measurement of Electric Field Intensity in 50 Hz in Frequency, no more than, % 4,0
Measurement Rate, Samples per Second 2
Range of Supply voltage of Battery or Accumulator, V 1,8-3,3
USB Supply Voltage, V 4,6 – 5,5
USB Consumption Current, no more than,mA 300
Accumulator Charging Current, no more than, mA 200
Time of Continuous Work at least, Hours 10
Overall Dimentions Height x Width X Depth, inches 4,5 x 1.8 x 0.7
Weight, oz 2.1
Display Color TIF, 128 x 160
Operating Temperature, C From – 20 to +45
  • Soeks Impulse
  • User manual
  • 2 batteries (AAA)
  • Rigid paperboard box
