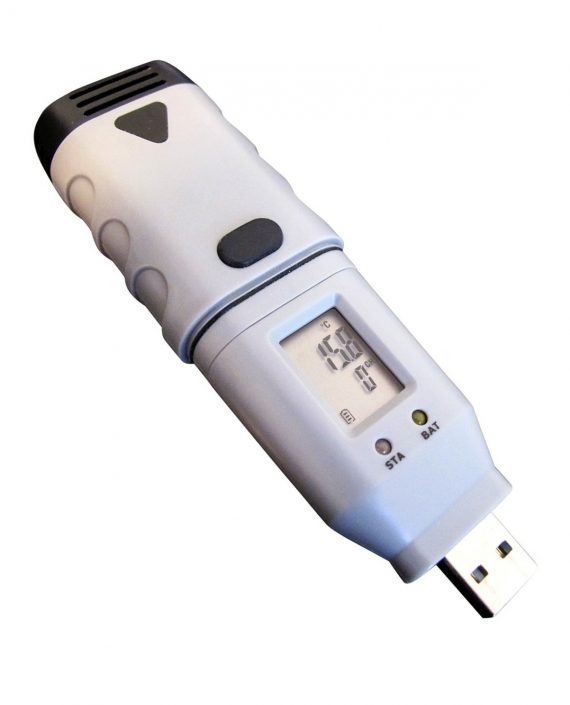

Air Temperature, Relative Humidity, Dew Point Data Logger

Basically, each of several (maximum of 4) loggers placed in different spots with user’s desired sampling rate is pre-set through the provided logging software. Once all the logging activities have been completed, measurements from each device are to be downloaded back to the software then multiple data curves can be displayed in one common screen. In this way, it is reasonably convenient for users to view all recorded data & draw comparison instantly of any major temperature movement in different locations.

The logger itself is able to measure and store up to 32,000 temperature (-35 to 80ºC), relative humidity (0 to 100% RH), dew point readouts with the various sampling rate (from 2 seconds to 24 hours). Logger status, alarm and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging, or confirm and clear LED alarm when the LED alarm is held status. Users can plug the logger straight into PC’s USB port without any cables. The software is compatible with Windows 7, 8(32 bit and 64 bit Versions), XP operating system. All recorded data is printable or export to different file formats (txt, xls, csv, bmp, jpg). It has been widely used in HVAC, transportation, refrigeration, building and many other industries.

  • Massive data storage capacity to minimise the possibility of data loss or overwrite
  • Maximum of 4 individual logger’s measurements to be displayed in single graph
  • Choice of start / stop logging operations to suit any circumstance
  • Instant, maximum, minimum, average data interpretation on graph
  • LED Alarm and status indication
  • Battery level indicator
  • Data exportation to .xls, .txt, .jpg…. file formats
  • No internet or Ethernet service is necessary on site
  • Password protection of recorded data for security purpose
  • Two points calibration
  • Replaceable lithium battery and data won’t be lost if exhausted
  • Software compatible to Window 7, 8, XP
  • IP66 environmental protection, RoHS compliance
ModelTH-322
TemperatureMeasurement range-35 ~ 80°C (-31 ~ 176°F)
Accuracy± 0.5°C (± 0.9°F)
Resolution0.1°C (0.2°F)
Relative

Humidity

Measurement range0 – 100% RH
Accuracy± 3% RH
Resolution0.1% RH
Sample rateEvery 2 seconds to 24 hours
Logging capacityApprox. 32,000 set of data (64k Bytes)
Display3 digits & 1 decimal on LCD
CommunicationUSB interface
Starting methodImmediate, manual push button or nominated date & time operation
Stopping methodManual, number of recorded data specified, or full memory
LED lights indicatorRed, yellow & green for various status
AlarmProgrammable high & low alarm limit
FunctionsInstant, MAX., MIN., AVG. value indication
Operating condition-35 ~ 80°C (-31 ~ 176°F); 0 – 100% RH
Storage condition10 ~ 50°C (50 ~ 122°F); 20 – 60% RH
Case materialABS plastic
Data exportationtxt, xls, csv, bmp, jpg file formats
Power supplyReplaceable 1/2AA 3.6V Lithium battery, 1200mAh
Battery lifeApprox. 2 years @ 1 minute sampling rate

Approx. 4 years @ 10 minute sampling rate

SoftwareCompatible to Window 7, 8, XP
MountingWall mounted with supplied bracket
ProtectionIP66 rating
Dimensions (LxWxH)123 x 37 x 23 mm
WeightApprox. 90g
  • 1 x USB Air Temperature, Humidity, Dew Point Data Logger with LCD Display
  • 1 x Data Logging Software on CD
  • 1 x 1/2AA 3.6V Lithium Battery
  • 1 x Wall Mounting Bracket
  • 1 x Instruction Manual
  • 1 x Standard Factory Packing
