DC Voltage Current Data Logger

This DC Voltage and Current Data Loggers are two channel battery powered stand-alone compact data loggers that record up to 32,000 samples each of DC Voltage or Current data. It comes with dual channels large digital LCD screen, Max. & Min. values, data exportation to software with graphical display. The gratis logging software is very easy to use after all configuration have been set. It simplifies measurement and monitoring of multiple processes, a great device that will meet your application needs.

  • DC Voltage measurement range: 0 – 50 VDC
  • DC Current measurement range: 0 – 24 mA
  • Build-in Air Temperature measurement range: -40 to 70 ºC
  • USB connection to PC
  • Compatible to Windows XP, 7, 8, 10 operating systems
  • Its configurable alarm lets you manually define the desired range for critical situations

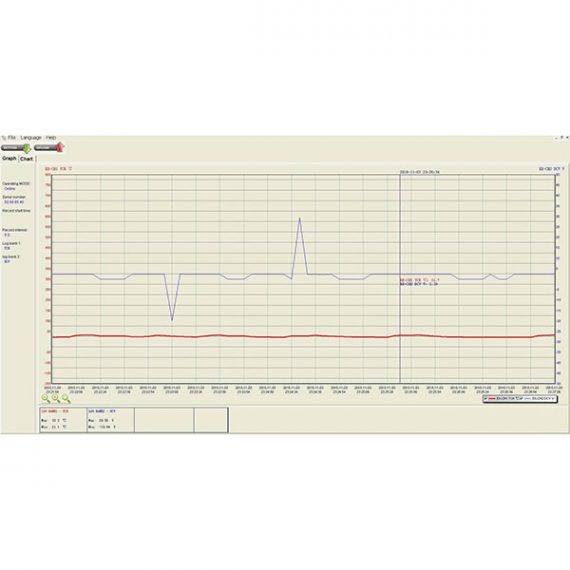

  • Data analysis and graph viewing, export data to Excel / TXT format
  • Ability to save logged data after to power failure
  • 16,000 data logging capacity each for any combination of DC Voltage, DC Current or Air Temperature
  • Large LCD display to clearly show all logging information including temperature and DC voltage
  • IP65 enclosure
  • Battery level indicator
  • The device can be used as portable, desktop or wall mounted.

Model VA602-DCV
DC Voltage (V1 Channel) Measurement range: 0 to 50 VDC
Accuracy: ± 0.04V
DC Current (V2 Channel) Measurement range: 0 to 24 mA
Accuracy: ± 0.05 mA
Internal Sensor Measurement range: Temperature: -40 ~ 70ºC
Accuracy: ± 0.5ºC
Memory Capacity: 32,000 readings
(16,000 each channel for any 2 combinations)
Sample Rate: 5 sec ~ 24 hours
PC Software: Software and USB driver required (Included on CD)
Power Supply: 1/2AA 3.6V Lithium Battery
Battery Life: Approx. 3 Years
Case Material: ABS Plastic
Storage Temperature Range: -40 to 80°C (-40 to 176°F)
Dimensions: 74(L) x 113(W) x 31(H) mm
Weight: Approx. 150 grams (with battery)

  • 1 x Multi Functions Data Logger
  • 1 x Data Logging software on CD
  • 1 x 1m Mini-USB Data Cable
  • 1 x 1/2AA 3.6V Durable Lithium Battery
  • 1 x Mini Din DC Voltage Measurement Cable
  • 1 x Mini Din DC Current Measurement Cable
  • 1 x Instruction Manual
  • 1 x Standard Factory Packing
