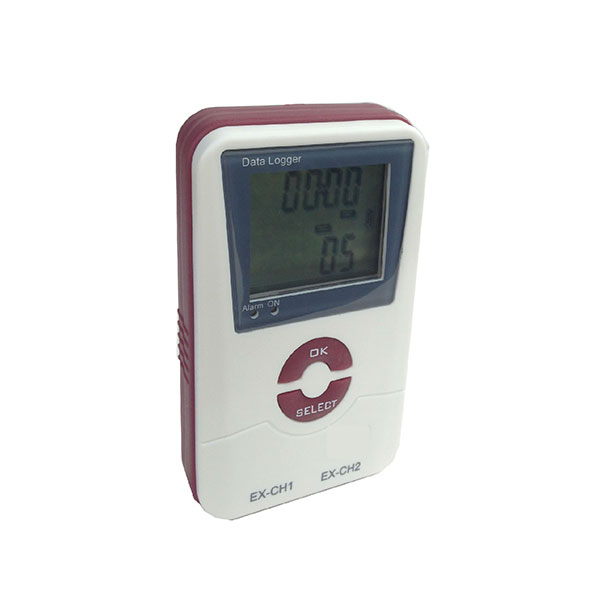

DC Voltage Type K and Air Temperature Thermocouple Data Logger

Can be used as portable, desktop or wall mounted
Specifically for logging of DC Voltage (0 – 50 VDC), Type K Thermocouple or Air Temperature
Easy to used logging software
Capacity of storage up to 32,000 readings in total for any 2 of those combinations
Dual channels large digital LCD screen, Max. and Min. values, data exportation to software with graphical display
Configurable alarm allows user to manually define the desired range for critical situations

$220.00 AUD Inc. GST

In stock

SKU: va602-dcvk Categories: Thermocouple Data Loggers, Voltage Data Loggers

Need Help? Call 1300 788 213 Now to Talk to an Expert!

DC voltage measurement
Type K Thermocouple measurement
Air Temperature measurement

16,000 data logging capacity each for any combination of DC Voltage, Type K Thermocouple or Air Temperature
DC Voltage measurement range: 0 – 50 VDC
Type K Thermocouple measurement range: 0 – 800 ºC
Build-in Air Temperature measurement range: -40 to 70 ºC
Real time measurement
, Min. & Alarm setting functions

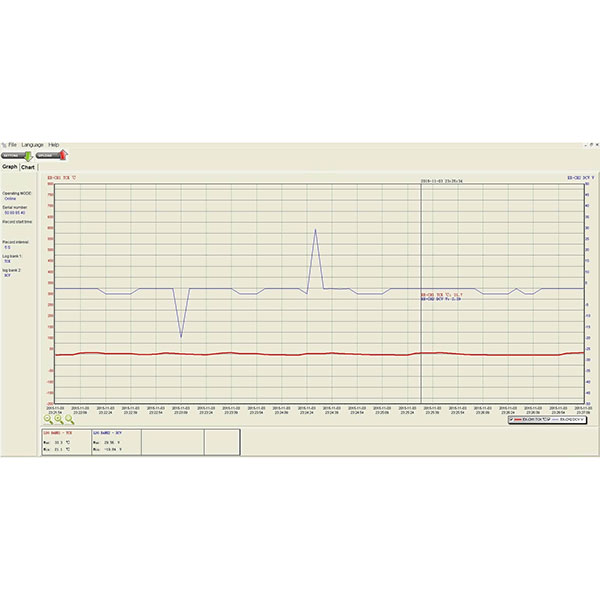

Data analysis & graph viewing, export data to Excel / TXT format
USB connection to PC
Large LCD display to clearly show all logging information including temperature& DC voltage
Battery level indicator
IP65 enclosure
Battery Life: Approx. 3 years under standby mode
Logged data would not lose due to power failure
Compatible to Windows XP, 7, 8, 10 operating systems

Model: VA602-DCVK
Type K Thermocouple (V1 Channel) Measurement range: -200 ~ 800 ºC
Accuracy: ± 1.2ºC
DC Voltage (V2 Channel) Measurement range: 0 to 50 VDC
Accuracy: ±0.04V
Internal Sensor Measurement range Temperature: -40 ~ 70ºC
Accuracy: ± 0.5ºC
Memory Capacity: 32,000 readings
(16,000 each channel for any 2 combinations)
Sample Rate: 5 sec ~ 24 hours
PC Software: Software and USB driver required (Included on CD)
Power Supply: 1/2AA 3.6V Lithium Battery
Battery Life: Approx. 3 Years
Case Material: ABS Plastic
Storage Temperature Range: -40 to 80°C (-40 to 176°F)
Dimensions: 74(L) x 113(W) x 31(H) mm
Weight: Approx. 150 grams (with battery)

1 x Multi Functions Data Logger
1 x Data Logging software on CD
1 x 1m Mini-USB Data Cable
1 x 1/2AA 3.6V Durable Lithium Battery
1 x Mini Din DC Voltage Measurement Cable
1 x Type K Thermocouple Temperature Sensor
1 x Type K Mini Plug (Spare)
1 x Instruction Manual
1 x Standard Factory Packing
