AUD $305.00 Excl. GST
Need Help? Call 1300 788 213 Now to Talk to an Expert!

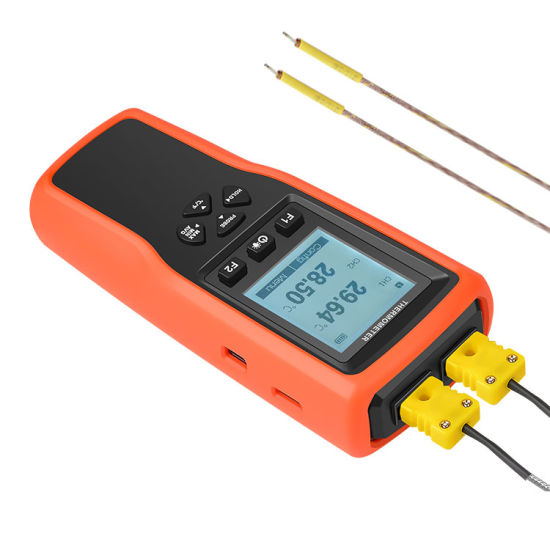

This high accuracy dual channels thermocouple thermometer has all the features you need. It accepts either Type K, T or J thermocouple input with extreme high accuracy & 3 decimals resolutions (0.01°C). Data logging capacity is approx. 20,000 set of records with data export direct to PC in Excel Spreadsheet or similar format. Real time curve plotting with digital readouts are shown concurrently on sizable screen. Calibration function, alarm setting are also available on the device. It is highly recommended for food & beverage industries, laboratory, cold chain transportation, or acts as a reference thermometer within the testing & calibration environments.
- 2 channels thermocouple thermometer with data logging function
- High accuracy with 0.01°C
- Support type K, T or J thermocouple input
- 32 bits high speed processor with low power consumption
- Sampling interval from 1 sec to 24 hours
- Real time measurements on LCD display with graphical trends
- Hi / Low alarm limit setting with audible warning signal
- Data exportation via USB connection directly to selectable file format, no software needed.
- Max., Min., Avg., Temperature difference
- Multi Points Calibration
| Model | TC-620L | ||
| Number of channels | 2 | ||
| Type | K | T | J |
| Measurement range | -200 to 1370°C | -200 to 400°C | -200 to 1200°C |
| Accuracy | ±(0.3% │t│+0.40)°C | ±(0.3% │t│+0.40)°C | ±(0.3% │t│+0.40)°C |
| Resolution | 0.01°C. | 0.01°C | 0.01°C |
| Display | 5 Digits LCD w/ LED backlight | ||
| Features | 3 decimals digital readouts with graphical result of latest 70 seconds | ||
| Sampling rate | Selectable from 1s to 24h | ||
| Logging capability | Approx 20,000 readings | ||
| Memory | 15M file storage capacity | ||
| File export format | TXT, CSV, XLS, DLG | ||
| Interface | USB connection | ||
| Power Supply | Replaceable 1/2AA 3.6V Lithium Battery, 1200mAh | ||
| System compatibility | Window 7/8/10, XP, Vista | ||
| Alarm | User defined temperature range, audible alarm signaled if out of range | ||
| Calibration | In built calibration function | ||
| Operating temperature | -10 to 50°C | ||
| Storage temperature | -20 to 60°C | ||
| Power supply | 3 x 1.5V AAA batteries | ||
| Casing | ABS plastic with rubber boot sleeve | ||
| IP Rating | IP52 | ||
| Dimensions (LxWxD) | 174 x 73 x 40 in mm | ||
| Weight | Approx. 210g | ||
| Certifications | CE, EMC, RoHS | ||
- 1 x Thermocouple Thermometer Data Logger
- 2 x Type K 900mm Flexible Thermocouple Wire
- 2 x Type K Rigid Probe (75mm Probe Length)
- 1 x USB Cable
- 3 x 1.5V AAA Battery
- 1 x Rubber Boot
- 1 x Rugged Carry Case
- 1 x Instruction Manual
- 1 x Standard Factory Packing
