USB Thermocouple Data Logger

AUD $140.00 Excl. GST

Need Help? Call 1300 788 213 Now to Talk to an Expert!

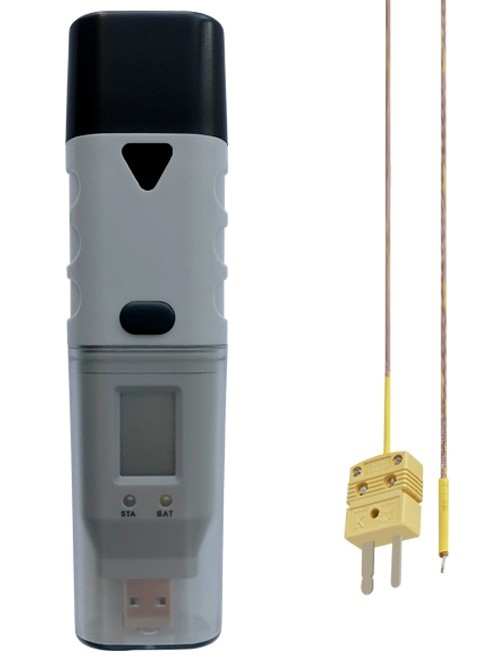

This low cost & reliable thermocouple temperature data logger accepts either type K, J or T thermocouple with approximately 32,000 set of data storage capacity. User is able to use the provided software to setup and download logged data easily to PC via USB connection. Data can be viewed in tabulated or graphical format for analysis, print or export to other file types (xls, txt, csv, bmp, jpg). Logging function can be commenced immediately after setup completed, control ON / OFF button on device, or specified time arrangement. Software is compatible to Window 7, 8, 10, XP or Vista operating system. Package also comes with a K type flexible thermocouple as well as handheld temperature probe. A truly professional device for all your temperature measurements.

  1. Compatible to Type K, J, T thermocouple inputs
  2. Portable design with precise & consistent in measurements
  3. Sampling interval from 1 sec to 24 hours
  4. Real time readout on LCD display or software in graphical format
  5. Dual LED light indicators
  6. Data exportation to Excel, pdf or TXT file format
  7. Password protection for privacy
  8. Data logging method: Immediately, manual or specific time range
  9. 2 points calibration function
  10. IP67 Protection Rating
Thermocouple

Temperature

Measurement range Type K: -200 to 1370°C (-328 to 2498°F)

Type J: -200 to 1190°C (-328 to 2498°F)

Type T: -200 to 390°C (-328 to 734°F)

Accuracy ±1°C (±2°F)
Resolution 0.5°C (1°F)
Sensor location External
Display Digital LCD
Memory capacity Approx 32,000 set of data
Sampling rate Selectable from 1s to 24h
Interface USB connector
Power Supply Replaceable 1/2AA 3.6V Lithium Battery, 1200mAh
Battery Life Approx. 2 Years @ 1 minute sampling rate

Approx. 4 Years @ 10 minute sampling rate

Case Material ABS, TPU, PC
Software Compatible to Windows 7,8,10, XP, Vista OS
Dimensions (LxWxD) 120 x 37 x 23 in mm
Weight Approx. 72g
  • 1 x USB Thermocouple Data Logger
  • 1 x Data Logging Software
  • 1 x 1/2AA 3.6V Lithium Battery
  • 1 x Wall Mounting Bracket
  • 1 x Instruction Manual
  • 1 x Standard Factory Packing
  • 1 x 900mm Type K Flexible Thermocouple
  • 1 x 75mm (Probe Length) Handheld Rigid Type K Thermocouple
