AUD $399.00 Excl. GST
Need Help? Call 1300 788 213 Now to Talk to an Expert!

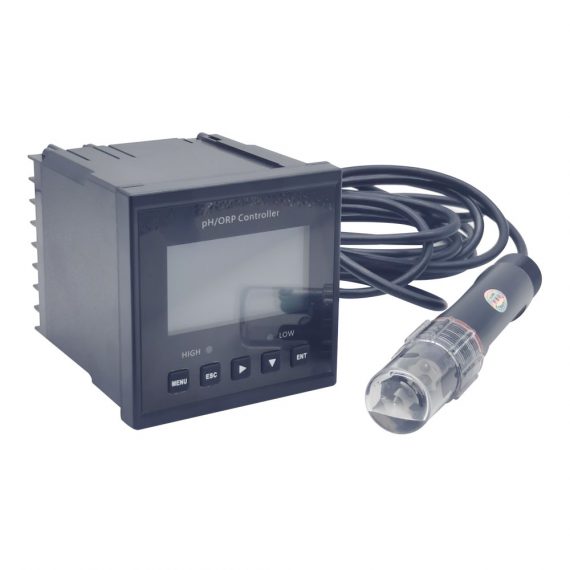

This precise 3 in 1 pH, ORP & temperature controller / indicator is able to offer high accuracy (± 0.02 pH) along with measurements in real time. Meter can be programmed to provide 4-20mA current signal for controlling application. It also features with auto / manual temperature compensation, relay alarm, 5m length cable for pH electrode, screw connection pH electrode to suit most installation.
Notes:
- ORP probe is to be requested upon ordering at additional cost.
- The length of the cable can be customized upon application. Please enquiry with our sales team for confirmation.
- Monitoring of pH, ORP & liquid temperature in single unit
- 4 digits LCD display
- Automatic / Manual Temperature Compensation
- Precise in accuracy
- High performance CPU with good electromagnetic compatibility
- High / Low alarm relay with switch
- 4-20mA output signal
- Anti-corrosive electrode
- Easy installation
| Model | PHC-150 | |
| pH | Measurement Range | 0.00 – 14.00 pH |
| Accuracy | ± 0.02 pH | |
| Resolution | 0.01 pH | |
| ORP | Measurement Range | -1000 – +1000 mV (-2000 – +2000 mV Optional) |
| Accuracy | ± 1 mV | |
| Resolution | 1mV | |
| Liquid Temperature | -10 – 130 °C | |
| Temperature Compensation | Automatic or Manual
-10 – 60°C: ± 0.3°C 60 – 130°C: ± 2°C |
|
| Display | 4 digits 2.8″ LCD | |
| Screen Resolution | 128 x 64 | |
| Electrode | PPS | |
| Working Pressure | 0 – 0.5 MPa | |
| Cable | RVP+ Coaxial w/ double shielding | |
| Cable Length | 5 meters | |
| Fitting | 3/4″ NPT thread | |
| Panel Cut-out (HxW) | 92 x 92 mm | |
| Input Resistance | ≥ 1012 Ω | |
| Output | Isolated, 4-20mA can be set against pH, ORP or temperature accordingly | |
| Alarm | High & Low relays | |
| Installation | Panel Mounted (Embedded) | |
| Operating Temperature | 0 – 60 °C | |
| Operating Humidity | 10 – 85% RH (No condensation) | |
| Power Supply | 220-240V AC @ 50 Hz / 24V DC | |
| Power Consumption | ≤ 5W | |
| Dimensions (HxWxD) | 96 x 96 x 112 mm | |
| Weight | 500g | |
- 1 x PH & ORP Controller
- 1 x PH Electrode w/ 5m cable
- 1 x Set of Mounting Clip
- 1 x User’s Manual
- 1 x Standard Factory Packing
