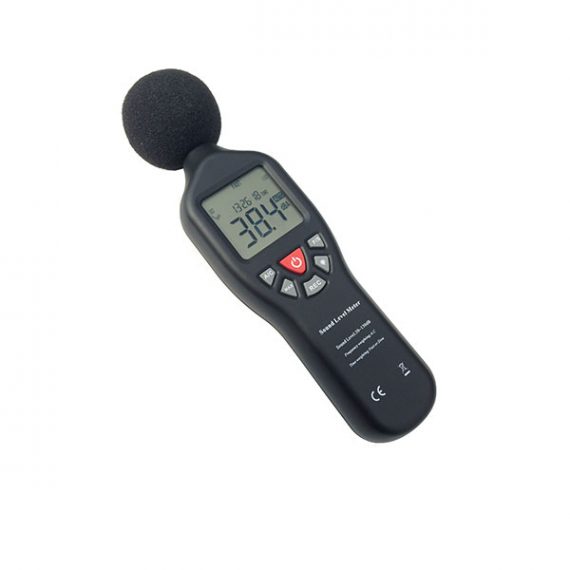

Sound Level Data Logger

Measurement range of sound level is from 30 to 130dB and capable of store 32,000 data set within the meter or real time logging in conjunction with complimentary software. Other main features are such as selectable fast or slow response, maximum & data hold functions, as well as sizable LCD display with visible full-screen backlight. It is a tremendous sound level measuring device for environmental applications, testing facility, and other relevant applications.

  • Sound level ranging (30 to 130 dB)
  • 32,000 data logging capacity
  • Large LCD display with visible backlight
  • Barograph indication
  • Max, data hold
  • Clock display
  • Low battery indicator
  • Complimentary Window based software
  • USB interface connection
  • AC / DC signal output
  • Auto power off
  • IEC 651 Type II, CE certified, RoHs

1. Sound level Range: 30 to 130dB (Low = 30 – 100dB, High = 60 – 130dB)
2. Accuracy : ±1.5dB (ref 94dB @ 1kHz)
3. Frequency Range: 31.5Hz to 8kHz
4. Frequency Weighting: A,C
5. 32,000 sets of data logging
6. Max, Hold
7. Time Weighting: Fast, slow
8. Backlight, Bar Graph display
9. Operation temperature: 0 to 50 ºC (32 to 122 ºF)
10. Operation humidity: 10 to 90% RH
11. Storage temperature: -10 to 60 ºC (14 to 14 ºF)
12. Storage humidity: 10 to 75% RH
13. Over range, low range, low power symbol display
14. Download data to a computer via supplied software
15. Auto power off and disable sleep mode
16. Power source: 4 x 1.5V AAA batteries
17. Dimensions: 240 x 50 x 40 mm
18. Weight: 165g

  • 1 x Sound Level Data Logging Meter with Windsock
  • 1 x Data Logging Software
  • 1 x USB Data Cable
  • 1 x AC/DC Output Signal Collector Cable
  • 4 x 1.5V AA Batteries
  • 1 x Carry Pouch
  • 1 x Instruction Manual
  • 1 x Standard Factory Packing
