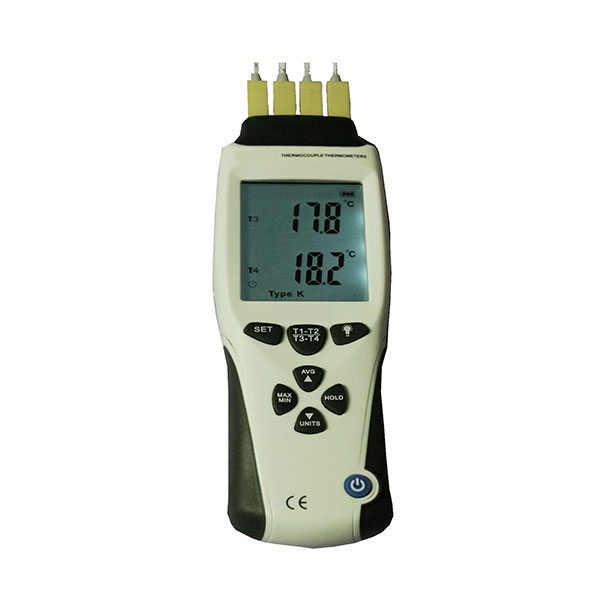

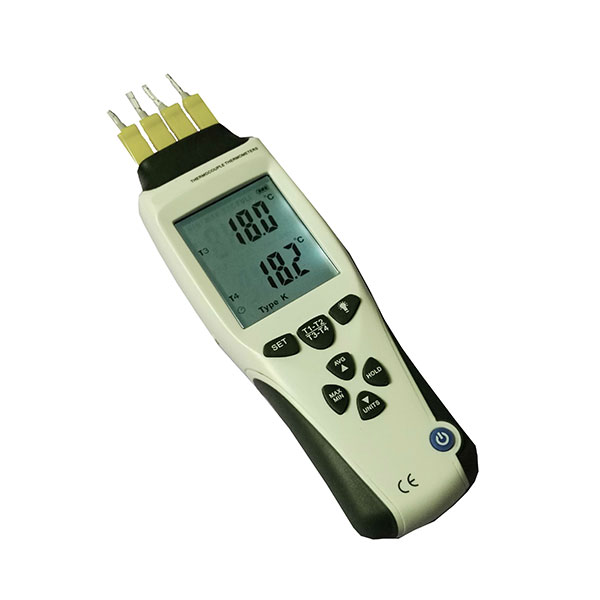

4 Channel logging Thermocouple Thermometer Type K J

  • User selectable ºC or ºF unit
  • Accept Type K or J thermocouple input
  • Precise in measurement with consistency
  • Temperature difference between channel 1 & 2 (T1-T2), or channel 3 & 4 (T3-T4)
  • Max. / Min. / AVG., data hold function
  • Sizeable LCD display with highly visible backlight
  • Low battery indicator
  • CE certified

4 Channel logging Thermocouple Thermometer Type K J is widely used in industrial / production fields, food processing industry, pharmaceutical and other professional applications.



ModelTT-960
Inputs (Channels)4
Input SensorType K or J Thermocouple
Measurement RangeType K-200~1370°C(-328~2498°F)
Type J-200~1100°C(-328~2012°F)
Accuracy-200~0°C; ±(0.5% rdg+2°C)

0~ 1000°C; ±(0.15% rdg+1°C)

1000~ 1370°C (Type K), 1000~ 1100°C (Type J);

±(0.5% rdg+1°C)



Resolution< 1000°C, 0.1°C / °F;

> 1000°C; 1°C / °F

Measurement UnitCelsius / Fahrenheit
Temperature Difference

Between Channels

Capable of providing temperature difference on

either T1-T2 or T3-T4as required

DisplayLCD with Backlight
Housing MaterialRobust durable ABS plastic
Operating Condition-20 ~60°C; 10 ~ 90% RH
Storage Condition-20 ~60°C; 10 ~ 75% RH
FeaturesMax. / Min., Data Hold
AVG FunctionThe average value of latest 10 readings
Battery9V
LCD Display47(W) x 57(H) mm
Dimensions185 x 66 x 32.8 mm
Weight245g (without battery)
  • 1 x 4 Channels Type K / J Input Thermocouple Thermometer
  • 1 x Carry Pouch

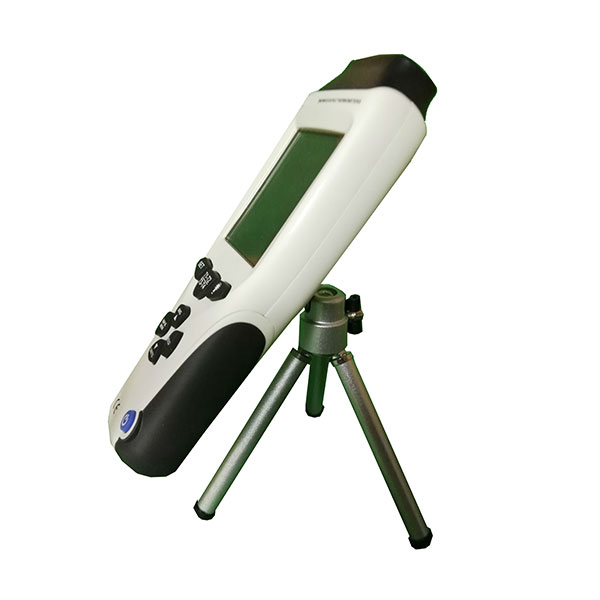

  • 1 x Tripod Stand
  • 1 x 9V Battery
  • 1 x User’s Manual
  • 1 x Factory Standard Packing
  • 4 x Type K String Type Thermocouple Sensor
