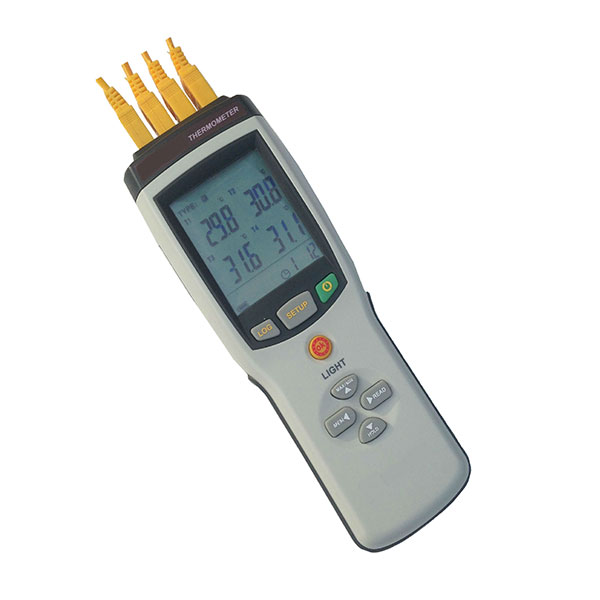

4 Channels Universal Thermocouple Thermometer Data Logger
- Store approximately 36,000 sets of data regardless of the number of thermocouples in place (maximum of 4 inputs)
- Memory of 88 sets of data manually
- 4 Temperatures at once
- Measuring, Alarming and Data logging functions
- Temperature calculations- button and over-range alarm with a beeper and LED light
- Panel set-up
- SD-Card interface with unlimited memory
$335.00 AUD Inc. GST
In stock
Product added! Browse Wishlist
The product is already in the wishlist! Browse Wishlist
SKU: tdl-804 Categories: Industrial Thermometers, Thermocouple Data Loggers
Need Help? Call 1300 788 213 Now to Talk to an Expert!
- This leading data logging thermocouple thermometer is designed to support all kinds of thermocouple inputs including type K, J, E, T, R, S, N, B and contains 4 input channels with automatic recognition of thermocouple type.
- It is widely used in industrial / production fields, food processing industry, pharmaceutical and other professional environments.
- User Selectable ºC or ºF
- Measurement Temperature range: – 200°C ~ 1372°C (-328°F ~ 2501°F)
- K Type Temperature resolution : 1000°C : 1°C/°F / K
- Accuracy: >100°C: ±1°C <100°C: ±2°C
- 20 Storage x 4 Temperature memory function

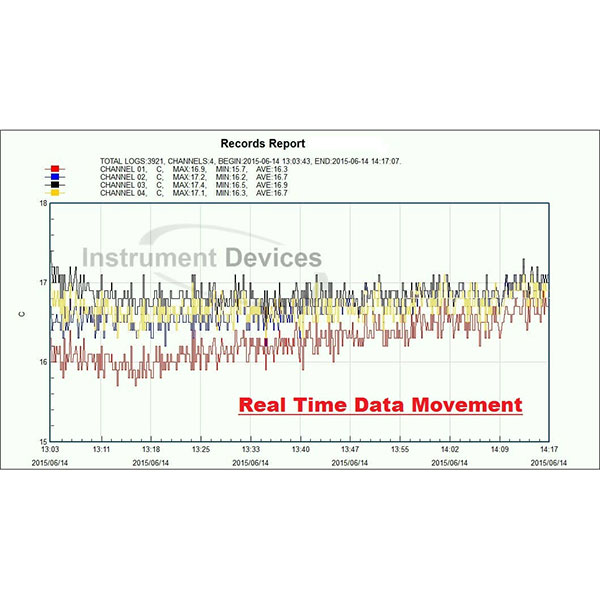

- Real-time graphical movement from software on PC screen
- Wide variety of interchangeable Thermocouple Probes
- LCD display with full-screen backlight
- Max Hold and Data Hold
- Mini USB interface
- Free configuration and graphing software
Model TDL-804
Inputs (Channels): 4
Type of Sensor: Type K J E T R S N B Thermocouples
Accuracy: ±1.0°C ±0.3%FS
Automatic Logging Capacity: 36,000 readings from thermometer (regardless 1 or 4 channels in place)
Manual Record Capacity: 88 readings (regardless 1 or 4 channels in place)
Key Feature: Real time logging & display in software
Measurement Range: -200 ~ 1800°C
Environment Range: -30 to +70°C (-22 to +158°F)
Resolution: 0.1°C
Data output: Mini USB interface
Battery: 9V
Logging rate: 1s ~ 24h
LCD display area: 42mm * 20mm
Dimensions: 187mm * 73mm * 53mm
Weight: 150g(without battery)
- 1 x 4 Channels Data Logging Thermometer
- 1 x Data Logging Software
- 1 x USB Cable
- 1 x 9V Battery
- 1 x User’s Manual
- 1 x Carry Case
- 4 x Type K Handheld Thermocouple Sensor (Free)
