8 Channels Thermocouple Thermometer Data Logger

AUD $798.00 Excl. GST

  • Support all kinds of thermocouple inputs including type K, J, E, T, R, S, N, B
  • 8 input channels with automatic recognition of thermocouple type
  • high-performance ARM microprocesso
  • Ultra-low power consumption
  • High density SMD assembly technology
  • Store approximately 86,000 sets of data regardless of the number of thermocouples in place (maximum of 8 inputs)


In stock

Need Help? Call 1300 788 213 Now to Talk to an Expert!
  • Selectable ºC or ºF
  • Can accept type K, J, E, T, R, S, N, B thermocouples
  • 86,000 sets of data logging capacity

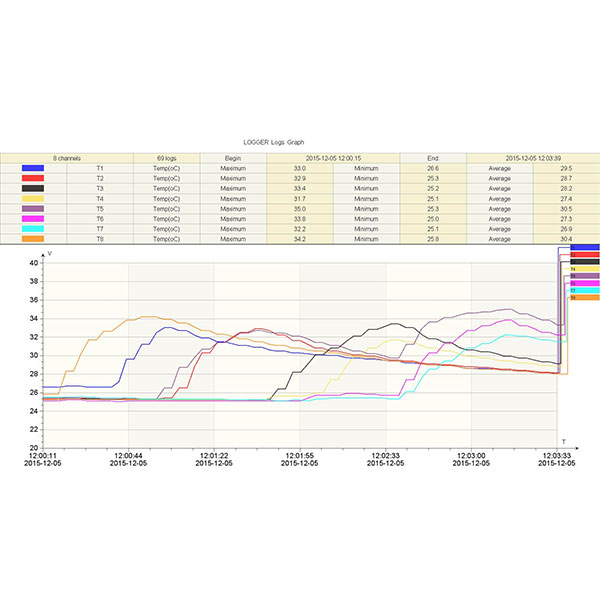

  • Real-time graphical movement from software to PC screen
  • Single point offset calibration through software to enhance accuracy
  • High precision and consistent performance device
  • Data exportation to Excel spreadsheet format, .PDF or .BMP files
  • LCD display with full-screen backlight
  • Max., Min. and data hold functions for all the channels
  • Robust housing
  • Free configuration and graphing software
  • Portable, wall mounted or desktop

It is widely used in industrial and production fields, food processing industry, pharmaceutical and other professional environments.

Model TDL-220
Inputs (Channels): 8
Type of Sensor: Type K J E T R S N B Thermocouples
Measurement Range: -200 ~ 1800°C
Accuracy: Sensor: ±0.1% to 1.0°C (upon type of sensor)
Data Logger: ±0.5°C
Resolution: 0.1°C / 0.1°F
Logging Capacity: 86,000 readings (regardless 1 or 8 channels in place)
Key Feature: Real time logging & display in software
Environment Range: 0 – 50°C; 0 – 80%RH
Data output: USB interface
Battery: 9V
Logging rate: 1s ~ 240 seconds
Display: 68mm x 35mm LCD screen
Dimensions: 162mm x95mm x35mm
Weight: Approx. 290g

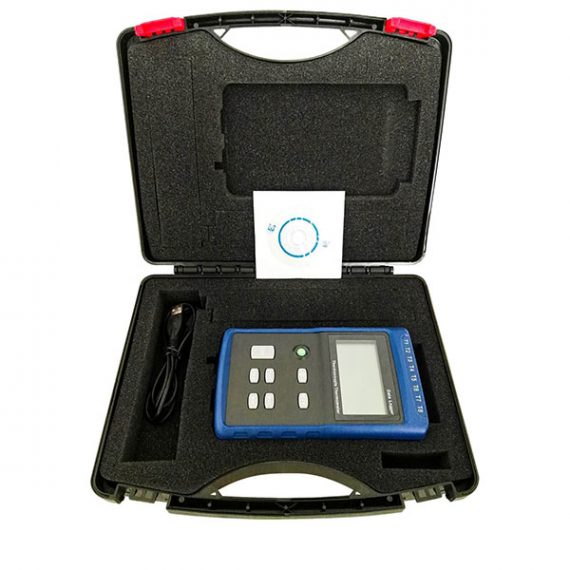

  • 1 x 8 Channels Data Logging Thermometer
  • 1 x Data Logging Software
  • 1 x USB Cable
  • 1 x 9V Battery
  • 1 x User’s Manual
  • 1 x Carry Case
  • 4 x Type K Handheld Thermocouple Sensor (75mm Probe)
  • 4 x Type K Flexible Thermocouple Sensor (Approx. 900mm Length)
