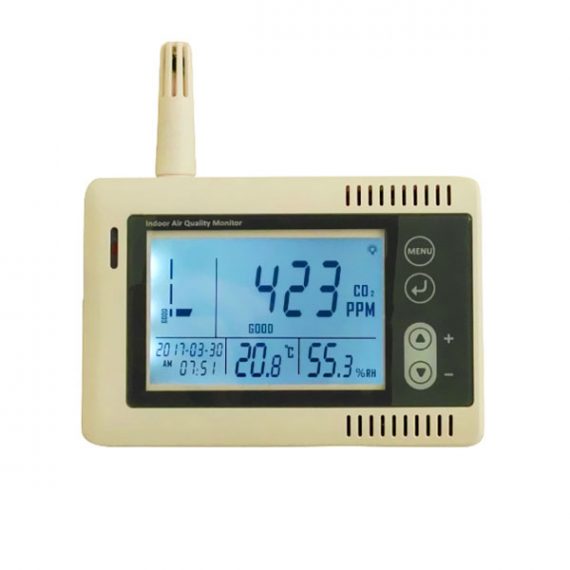

CO2 Data Logger (Carbon Dioxide, Temperature, Humidity)

  • 3 in 1 Carbon dioxide, air temperature & relative humidity data logger
  • Adopt the latest technology of 2 channels NDIR CO2 sensing element & capacitance type humidity sensor
  • Massive data storage capacity to minimise the possibility of data loss or overwrite

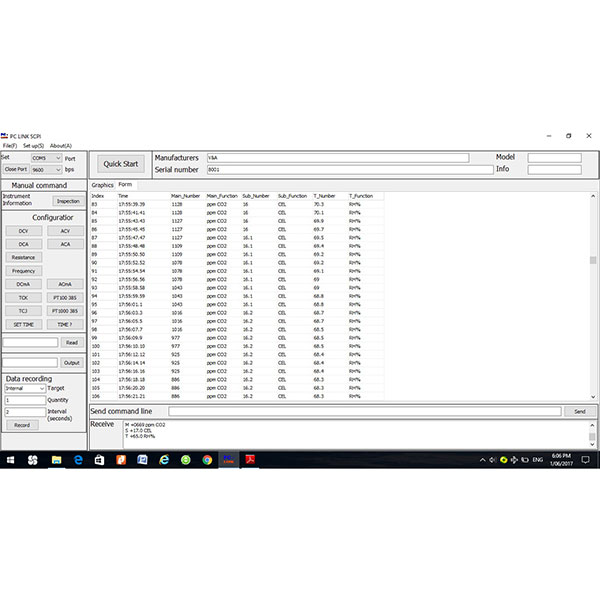

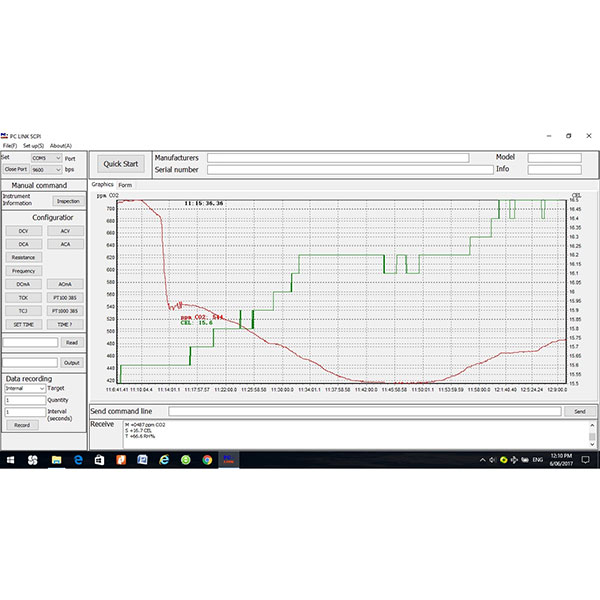

  • Option of data logging through software with real time graphical display, or bypass the software & directly to SD memory card
  • Sizable LCD display with full-screen backlight
  • Audible & LED alarm indicator
  • Calibration function
  • Software compatible with Window 7, 8, 10 operating system
  • IP40 protection, RoHS compliance

It is a perfect device to monitor the air quality in your home, office, greenhouse or other indoor premises

Carbon dioxide CO2 is a non-toxic gas but the rising of CO2 concentration in air will have potential impact on the radiation balance of atmosphere, known as ‘greenhouse’ effect. Hence the level of CO2 should be monitored on regular basis.

ModelCO2-810
Carbon Dioxide

(CO2)

Measurement range300 – 3000 ppm
Accuracy± (50 ppm + 3%)
Resolution1 ppm
TemperatureMeasurement range-20 ~ 50°C (-4 ~ 122°F)
Accuracy± 0.5°C (± 0.9°F)
Resolution0.1°C (0.2°F)
Relative

Humidity

Measurement range0 – 100% RH
Accuracy± 3% RH
Resolution0.1% RH
SensorHumidity: Capacitance type

CO2: Dual channels non-dispersive infrared (NDIR) sensor

DisplayLCD with LED white backlight
Respond timeCO2: < 60s

Temperature & humidity: < 10s

AlarmProgrammable high & low alarm limit;

audio & red light warning indicator

Connection portUSB interface
Sensor warm upApprox. 2 minutes (2 hours for first time)
Logging interval1 minute to 24 hours
Data storage capacityUnlimited internal memory through logging software ; OR

8GB SD card* (approx. 1 million set of data)

Data exportationTXT file type; exportable to Microsoft Excel
FeaturesMAX. / MIN. / Data hold
Relay output1 channel (max. 125VAC @ 0.5A / 30VDC @ 1A)
Case materialABS plastic
Operating condition0 ~ 50°C (32 ~ 122°F); 0 – 95% RH
Storage condition-40 ~ 70°C (-40 ~ 158°F); 0 – 95% RH
Power supply240VAC power adapter or USB port from PC
Power consumption3.5W Average; 5W Maximum
MountingDesktop / Wall mounted
ProtectionIP40 rating
Calibration functionYes
Dimensions (LxWxH)85 x 125 x 25 mm
Weight185g

* Device can only accept 8GB SD card as maximum

  • 1 x Carbon Dioxide, Air Temperature & Humidity Data Logger
  • 1 x Data Logging Software CD
  • 1 x USB Cable
  • 1 x Power Adapter (AU Type)
  • 1 x 8GB SD Card
  • 1 x Instruction Manual
  • 1 x Standard Factory Packing
