Air Quality Meter Data Logger, PM1.0, 2.5 & 10, CO2, TVOC, HCHO, Air Temp, Humidity

AUD $650.00 Excl. GST

Need Help? Call 1300 788 213 Now to Talk to an Expert!
Model No.:
AQ-701

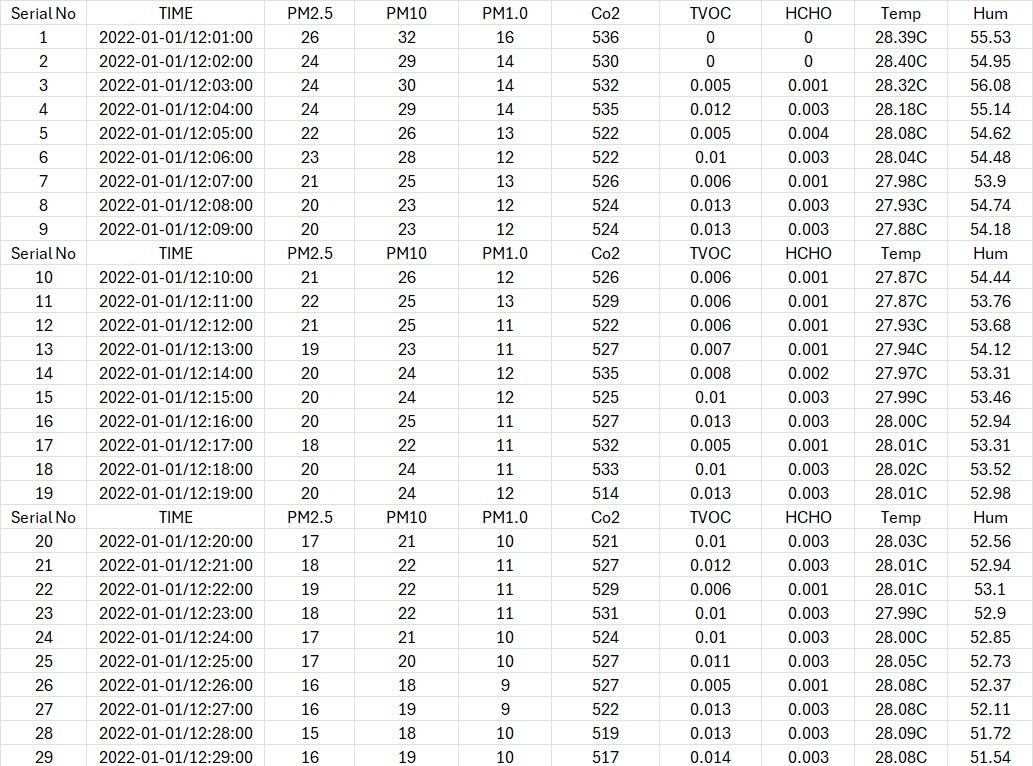

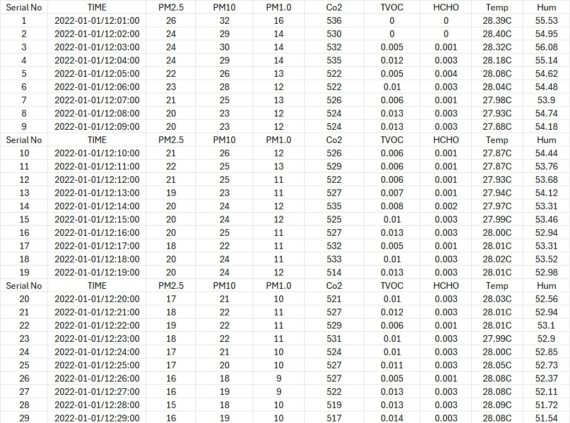

This superb 8 in1 data logging air quality monitor provides precise & reliable PM1.0, 2.5, 10 inhalable micrometers particle, Total volatile organic compounds (TVOC), Formaldehyde (HCHO) & Carbon Dioxide (CO2) readouts, as well as air temperature & humidity in one single screen. It engages the high precision import sensor with fast response processor. The unit is capable of store approx. 50,000 sets of data with all recorded data to be downloaded directly to PC in Excel Spreadsheet. CO2 sensor is re-calibrateable by user on site to maintain the most accurate readout in various environment. Meter can be wall mounted or desktop upon application.

  1. 6 major air measurements in one single device: PM1.0, 2.5, PM10, TVOC, CO2, HCHO
  2. Air temperature & humidity measurements
  3. Imported processor with high precision sensor for fast response & accurate measurements
  4. 2″ TFT colour LED display
  5. Massive data storage capacity
  6. Calibration function for CO2 measurements to enhance its accuracy in various environment
  7. More than 10 years service life for the sensors
  8. Rechargeable lithium battery
  9. Alarm setting
  10. Wall mounted or desktop
Model No. AQ-701
PM 1.0 / 2.5 / PM10 Measuring Method Laser scattering
Measuring Range 0 – 1000 ug/m³
Resolution 1 ug/m³
Accuracy 0 – 100 ug/m³: ± 10 ug/m³

100 – 1000 ug/m³: ± 10%

Response Time ≤ 1s
TVOC Measuring Method Electrochemistry
Measuring Range 0 – 2.000 mg/m³
Resolution 0.01 mg/m³
Accuracy ±0.03 mg/m³ or 10% whichever is greater
Response Time < 60s
CO2 Measuring Method Non Dispersive Infra Red (NDIR)
Measuring Range 370 – 9999 ppm
Resolution 1 ppm
Accuracy ± 3%
Response Time ≤ 5s
HCHO Measuring Method Electrochemistry
Measuring Range 0 – 1.000 mg/m³
Resolution 0.01mg/m³
Accuracy ±0.03 mg/m³ or 10% whichever is greater
Response Time < 60s
Temperature Range Measuring Range   -20 ~ 60℃
Resolution   0.01℃
Accuracy   ± 2℃
Humidity Range Measuring Range   0 ~ 100% RH
Resolution   0.01%
Accuracy   ± 3%
Display 3.2″ TFT colour screen
Logging Capacity 50,000 data set
Preheat Time 60s
Working Temperature 0 ~ 50 ℃
Working Humidity 0 ~ 90% RH
Power Supply 3.7V 18650 Lithium battery / 5V power adapter
Standby Time > 7 hours in continuous operation
Dimensions 140 × 134 × 33 in mm
Weight 270g
  • 1 x Data Logging Air Quality Meter
  • 1 x Rechargeable Lithium Battery
  • 1 x USB Cable with Power Adapter
  • 1 x Carry Case
  • 1 x Instruction Manual
  • 1 x Standard Factory Packing
